Installation

Version: 6.2.9

Last Updated: 31.03.2023

Option 1: Install it via CDN

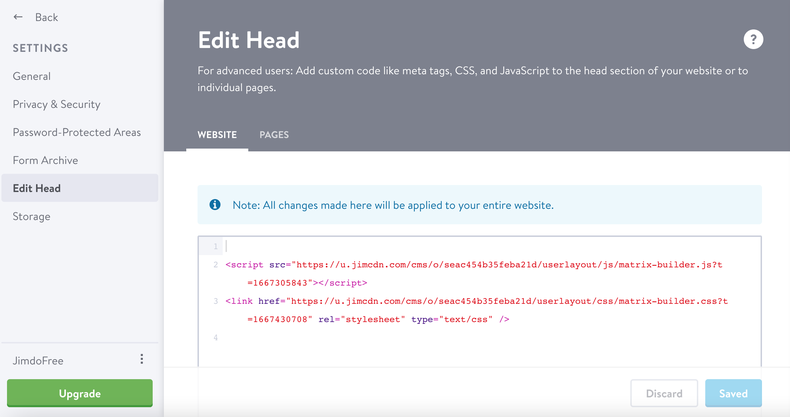

Copy the below files and paste them to your website ( Menu> Settings> Edit Head )


<script src="https://u.jimcdn.com/cms/o/sa58ac84176c7327c/userlayout/js/matrix-builder.js?t=1679646820" type="text/javascript"></script>
<link href="https://u.jimcdn.com/cms/o/sa58ac84176c7327c/userlayout/css/matrix-builder.css?t=1680246693" rel="stylesheet" type="text/css" />

The above files are being hosted on a Jimdo website. You can use the CDN only for the quick installation or testing. After which you download all source files and host them on your own website.

Option 2: download all source files and host them on your own website

Matrix Page Builder

( Uploaded 31.03.2023 )

page builder.zip

Compressed Archive in ZIP Format 729.5 KB

Download

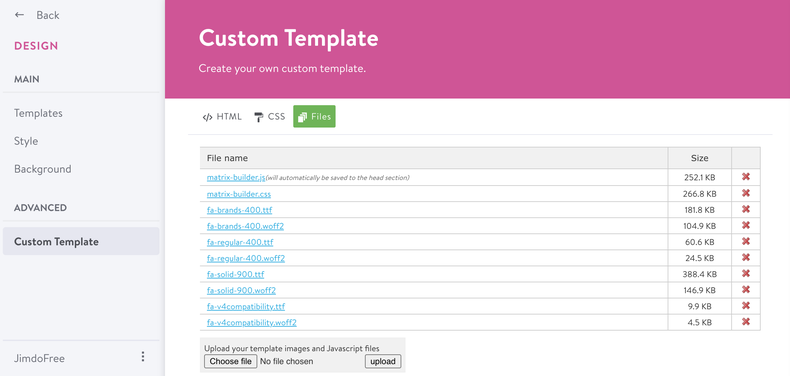

Unzip the folder 'Matrix Page Builder' and upload all files on your own Jimdo website ( Design> Custom Templates> Files)

Replace 2 files in section Edit Head in order to host the framework on your own website.

The next step is to install the advanced Style Editor.

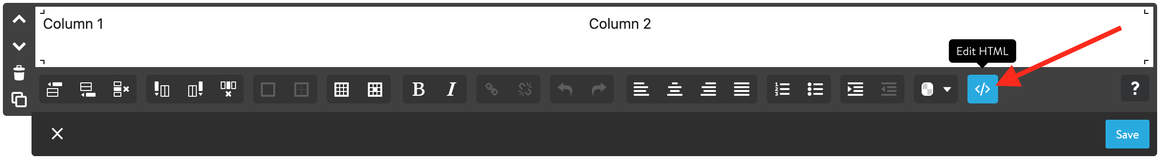

Add a module 'Columns' to the footer of your website with only one column. Inside of the column add 'Table' and clicking the button 'Edit HTML' replace the existing code with the following one:

Style Editor

part 1 ( table )



<div class="color-switcher admin-only mid-round add-10 color-white" spellcheck="false" style="background: #404040; max-height: 240px; overflow-y: scroll;">
<p style="color: #ffffff!important;">&nbsp;</p>
<div class="cc-map-additional-devider"><span style="color: white;">Global colors</span></div>
<table align="" border="0" cellspacing="10" cellpadding="0" width="100%" height="0%" class="mceEditable" style="border: 0px solid #ffffff; background-color: rgba(0, 0, 0, 0);">
<tbody>
<tr class="" style="height: 32px; color: white; font-size: 15px;">
<td class="color1" style="cursor: pointer; background-color: #2951d5; width: 32px; height: 32px; text-align: center; border-radius: 500px; border: 1px solid #666666;">&nbsp;</td>
<td class="bg-transparent color-white" style="background-color: rgba(0, 0, 0, 0); height: 32px;">&nbsp;bg-primary</td>
</tr>
<tr class="" style="height: 32px; color: white; font-size: 15px;">
<td class="color2" style="cursor: pointer; background-color: #f3f4f6; width: 32px; height: 32px; text-align: center; border-radius: 500px; border: 1px solid #666666;"><span style="color: #ffffff;">&nbsp;</span></td>
<td class="bg-transparent" style="background-color: rgba(0, 0, 0, 0); height: 32px;"><span style="color: #ffffff;">&nbsp;bg-primary-light</span></td>
</tr>
<tr class="" style="height: 32px; color: white; font-size: 15px;">
<td class="color3" style="cursor: pointer; background-color: #26262c; width: 32px; height: 32px; text-align: center; border-radius: 500px; border: 1px solid #666666;"><span style="color: #ffffff;">&nbsp;</span></td>
<td class="bg-transparent" style="background-color: rgba(0, 0, 0, 0); height: 32px;"><span style="color: #ffffff;">&nbsp;bg-primary-dark</span></td>
</tr>
<tr class="" style="height: 32px; color: white; font-size: 15px;">
<td class="color4" style="cursor: pointer; background-color: #2ccab9; width: 32px; height: 32px; text-align: center; border-radius: 500px; border: 1px solid #666666;">&nbsp;</td>
<td class="bg-transparent" style="background-color: rgba(0, 0, 0, 0); height: 32px;"><span style="color: #ffffff;">&nbsp;bg-secondary</span></td>
</tr>
<tr class="" style="height: 32px; color: white; font-size: 15px;">
<td class="color5" style="cursor: pointer; background-color: #76787f; width: 32px; height: 32px; text-align: center; border-radius: 500px; border: 1px solid #666666;">&nbsp;</td>
<td class="bg-transparent" style="background-color: rgba(0, 0, 0, 0); height: 32.5382px;"><span style="color: #ffffff;">&nbsp;bg-secondary-dark</span></td>
</tr>
</tbody>
</table>
<table align="" border="0" cellspacing="10" cellpadding="0" width="100%" height="0%" class="mceEditable" style="border: 0px solid #ffffff; background-color: rgba(0, 0, 0, 0);"></table>
<div class="cc-map-additional-devider"><span style="color: white;">Custom buttons</span></div>
<table align="" border="0" cellspacing="10" cellpadding="0" width="100%" height="0" class="mceEditable" style="border: 0px solid #ffffff; background-color: rgba(0, 0, 0, 0);">
<tbody>
<tr style="height: 32px; color: white; font-size: 15px;">
<td class="color6" style="cursor: pointer; background-color: #2951d5; width: 32px; height: 32px; text-align: center; border-radius: 500px; border: 1px solid #666666;">&nbsp;</td>
<td class="bg-transparent" style="background-color: rgba(0, 0, 0, 0);">&nbsp;background</td>
</tr>
</tbody>
</table>
<div class="c"></div>
<br /> <span class="is-brandon-font" style="color: #ccc; font-size: 12px;">Note: All changes made here will be applied to your entire website</span>
<div class="c"></div>
</div>

Inside of the same column, add the module "Widget/HTML" with the following code. Click the save button at the end.

Style Editor

part 2 ( Widget/HTML )



<var>advanced editor</var>
<script type="text/javascript">






















//<![CDATA[
    jQuery.noConflict();
(function($) {
// Init
$(document).ready(function() {
    $('#cc-inner .j-hgrid').unwrap().wrap( "<div class='m-section' />" );
    $(".cc-m-htmlcode").hover(
            function () {
                $("var,ins", this).show().css("display", "block");
            },
            function () {
                $("var,ins", this).hide();
            }
        );
    $('var').each(function () {
            $(this).closest('.m-section').removeClass().addClass($(this).text());
        });
   // main primary color
      var color = $(".color1").css("background-color");
$(".bg-primary").attr('style', 'background-color: '+ color +'!important');

    // accent light color
     var color = $(".color2").css("background-color");
$(".bg-primary-light,.bg-grey,.bg-gray").css("background-color",color);

    // primary dark color
    var color = $(".color3").css("background-color");
$(".bg-primary-dark").css("background-color",color);

    // secondary color
    var color = $(".color4").css("background-color");
$(".bg-secondary").css("background-color",color);

    // secondary dark color
    var color = $(".color5").css("background-color");
$(".bg-secondary-dark").css("background-color",color);

    // buttons
    var color = $(".color6").css("background-color");
    $(".hs-button:not(.ghost-white):not(.bg-white):not(.cd-btn.hs-button):not(.ghost-dark)").css("background-color",color);

    // body classes
    if( $('.is-boxed').length ){
     $('body').addClass('has-sidebar');
}
    // mobile switch
    $('.matrix-view').on('click', function(event){
      event.preventDefault();
$("#cms", window.parent.document).parent().parent().parent().toggleClass("j-prev-phone-portrait");
 });
    $('.cc-m-all-opened .is-fluid').removeAttr('data-mce-style');
    $('.j-module:has(.matrix-save)').closest('.j-hgrid').insertAfter($(".content-switcher"));



});
})(jQuery);
//]]>
</script>
<script type="text/javascript">
































//<![CDATA[
jQuery.noConflict();(function($){$(document).ready(function(){$(".matrix .is-fluid").draggable({containment:"parent",stop:function(){var l=(100*parseFloat($(this).position().left/parseFloat($(this).parent().width())))+"%";var t=(100*parseFloat($(this).position().top/parseFloat($(this).parent().height())))+"%";$(this).css("left",l);$(this).css("top",t)}});$(".matrix .is-fluid-area .is-fluid").resizable({containment:"parent",autoHide:!0,stop:function(e,ui){var parent=ui.element.parent();ui.element.css({width:ui.element.width()/parent.width()*100+"%",height:ui.element.height()/parent.height()*100+"%"})}});$(".reset-btn").click(function(){$(".matrix .is-fluid").draggable("destroy");$(".matrix .is-fluid").draggable()});$(".edit-btn").click(function(){$(".matrix .is-fluid").draggable("destroy")});$(".btn-delete").click(function(){$(this).parent().remove()});$('.btn-add').click(function(){$(this).parent('.is-fluid').clone().insertAfter($(this).parent())});$(".matrix .is-fluid").draggable().click(function(){$(this).draggable({disabled:!1})}).dblclick(function(){$(this).draggable({disabled:!0})});$('.is-fluid').removeAttr('data-mce-style');$('.bg-custom-color').each(function(){var bgColor=$(this).find('span').css('color');$(this).parent().attr('style','background-color: '+bgColor+'!important')})})})(jQuery)
//]]>
</script> <button class="btn btn-sm cc-m-save btn-save btn-float-left matrix-msg matrix-save invisible" data-action="save" style=
"width: 32px;height: 32px;position:fixed;text-align: center;top:1px;left:35px;z-index:999999;border:1px solid transparent;padding:5px;font-size:30px;background: #1ba9e1;color: #fff;-webkit-border-radius: 2px;border-radius:4px;">
&#160;</button><button class="btn btn-sm btn-float-left matrix-msg invisible matrix-view" style=
"width: 32px;height: 32px;position:fixed;text-align: center;top:1px;left:69px;z-index:999999;border:1px solid transparent;padding:5px;font-size:30px;background: #1ba9e1;color: #fff;-webkit-border-radius: 2px;border-radius:4px;"
data-action="save">&#160;</button>

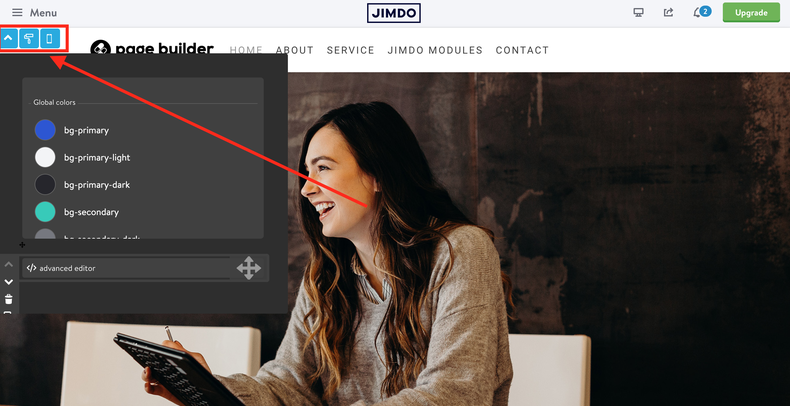

You should see 3 buttons in the top left corner:

1. Open/close the menu

2. Apply the color

3. Mobile view

Templates with sidebar

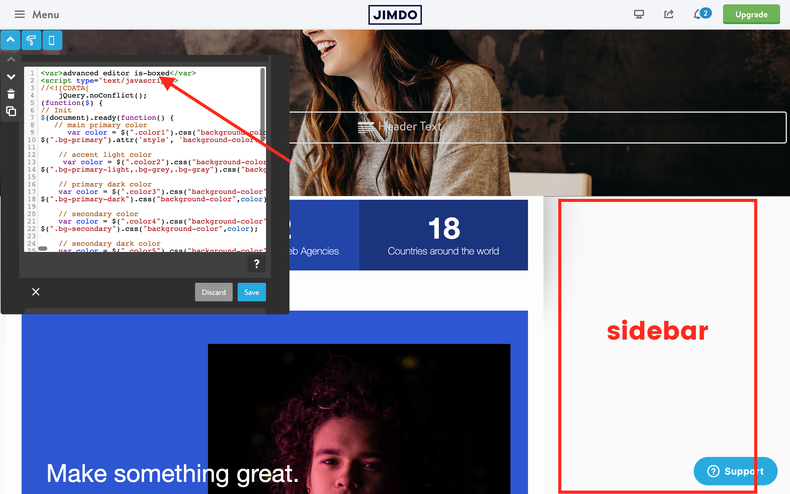

Full width elements don't work correctly in Jimdo templates having left or right sidebar. In this case you'll have to add 'is-boxed' in the first line of variable tag ( the second part of the style editor)

Frequently Asked Questions

What is Matrix Page Builder?

Matrix Page Builder is the advanced front-end framework, that lets you create beautiful Jimdo websites in the easiest and quickest way possible.

Can I use it with Dolphin website?

Matrix Page Builder can be used only with Jimdo Creator websites

Does it work with custom layout?

You can use the Matrix Page Builder only with default Jimdo templates

Does it work with all Jimdo themes?

Yes

Can I use it for my customers' websites?

There's no limitation to use the page builder for multiple websites

Is it free?

Once installed, you have the access to the documentation sections and main custom widgets. The access to the pre-made block sections, advanced drag & drop editor and the premium support requires a valid password that can be sent after upgrade.

How can I upgrade the page builder?

After the installation, you'll find the upgrade section inside the admin menu. It is possible to upgrade the page builder by contacting Jimdo Experts or Matrix Themes Partners.

Do you have any further questions?

For any further questions, please use the contact form from the page 'support'.
